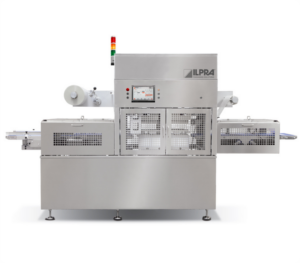

FoodPack Master represents ILPRA’s latest generation of inline tray sealing machines, engineered to combine flexibility, efficiency, and dependable performance in demanding production environments. Developed from the proven expertise behind the 1450, 1465, and 1485 series, this innovative range introduces new technologies that enhance packaging operations, increase output consistency, and streamline machine management. It is a versatile solution tailored to the requirements of today’s food packaging industry.
Equipped with a new cycloidal drive system, an upgraded film handling mechanism, and the advanced OMNI SCREEN control panel, FoodPack Master enables greater precision throughout the packaging process while improving operator interaction. Its design focuses on maximizing uptime, reducing maintenance requirements, and delivering reliable long-term performance. Available in Compact, Chain Feed, and Walking Beam Feed configurations, the range offers a packaging solution for a wide variety of products and production needs.
Gas Flush
Vacuum
Sealing
MAP/ATP
Skin
Overskin
Extraskin
Extraskin on Cardboard
Sealing
Up to 25 cpm
Gas Flush
Up to 22 cpm
MAP/ATP
Up to 15 cpm
Vacuum
Up to 22 cpm
Skin
Up to 8 cpm
Overskin
Up to 7 cpm
Extraskin
Up to 6 cpm
Extraskin on cardboard
Up to 6 cpm
Technical Data : FoodPack Master 560
Dimensions: 331 x 90 x h 190 cm
Weight: approx. 1100 Kg
Air Consumption: 6 bar - 5 Nlt/cycle
Sealing Area: 560 x 350 x h 120 mm
Technical Data : FoodPack Master 680
Dimensions: 342 x 90 x h 190 cm
Weight: approx. 1200 Kg
Air Consumption: 6 bar - 5 Nlt/cycle
Sealing Area: 680 x 350 x h 120 mm
Technical Data : FoodPack Master 850
Dimensions: 376 x 90 x h 196 cm
Weight: approx. 1400 Kg
Air Consumption: 6 bar - 5 Nlt/cycle
Sealing Area: 850 x 350 x h 120 mm
E-MEC Technology
This fully electromechanical movement technology at the workstation boosts both speed and productivity significantly.
PROGAS System
A patented ILPRA innovation, the PROGAS System reduces gas consumption while enhancing operational speed, and is a standard feature across this product line.
Constant Placement System
This advanced technology ensures a steady flow of trays into the machine, with belt and jaw interpolation that notably increases production speed.
Optional: EXTRASKIN System
Enables skin packaging at high protrusion levels, expanding packaging possibilities.
Optional: Pre-Heating System
Optimises skin packaging by pre-heating the film, improving packaging quality and efficiency.
Optional: Predictive Maintenance
A forward-thinking system that schedules maintenance and component replacements, enhancing machine longevity and reliability.
Optional: ID Control System
Enhances security by using badge recognition to identify authorised personnel, with up to three levels of access.
Optional: Anti-Crush System
Prevents damage to trays by halting the sealing process if trays are misaligned, ensuring product integrity.
This innovative technology ensures a seamless flow of trays into the machine, enabling the conveyor belt to efficiently separate and transport trays directly into the sealing mould without interruption. This process is achieved through sophisticated coordination between the jaws and conveyor belts, enhancing the machine’s operational efficiency and throughput.

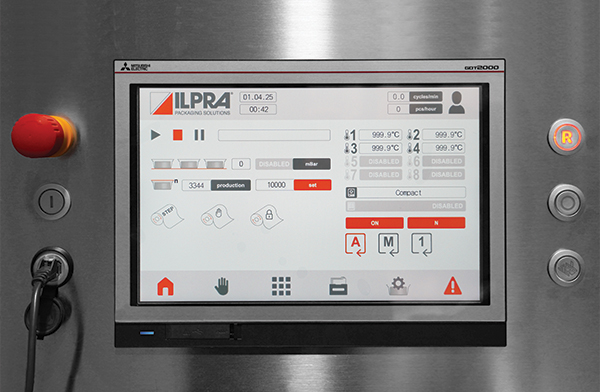

The advanced OMNI SCREEN control panel delivers a more connected and user-friendly machine operation experience. Featuring intelligent diagnostics, live production insights, and an intuitive touchscreen layout, it enables operators to monitor performance, access key information, and manage processes with greater speed and accuracy.
Designed to simplify daily operations, OMNI SCREEN provides streamlined navigation, immediate visibility of machine parameters, and enhanced control over production activities, contributing to improved efficiency and reduced response times.
An integrated photocell monitors tray positioning, activating an alarm to halt the sealing process if a tray is detected in an incorrect position. This safety feature prevents potential damage to the trays, ensuring the integrity of the packaging process and safeguarding against operational disruptions.

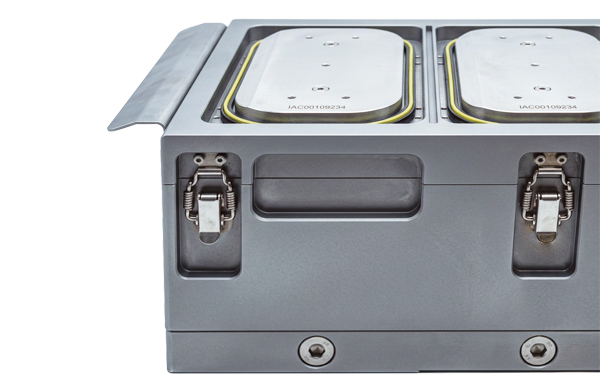

The tool-free quick-release lower mould system allows operators to remove the forming plate rapidly and safely, helping to reduce cleaning and maintenance times. Designed for greater operational flexibility, it enables fast format adjustments and simplifies routine production activities.
For selected tray formats, the system supports a quick transition from single-compartment trays to dual- or triple-compartment configurations in just a few minutes, minimizing downtime and improving overall production efficiency.
